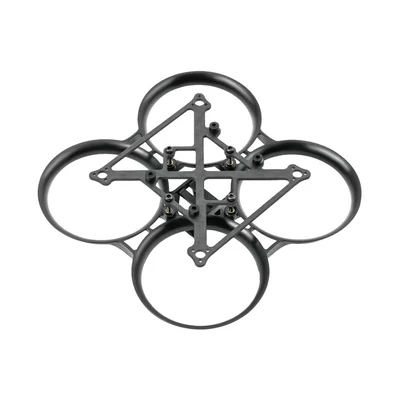

BetaFPV Pavo Pico Whoop frame

Pavo Pico is the Smallest 2S Sub100g DJI O3 Cinewhoop frame, compatible with other mainstream HD digital VTX on the market, such as Walksnail Avatar Pro Kit, Vista Kit, etc. Based on feedback from pilots during the BETA TEST before, we have made upgrades to the frame, such as lowering the battery slot height and adding filters and camera protection parts. These improvements will maximize the advantages of the camera and HD digital VTX providing, enabling a unique and unparalleled flying experience for pilots.

Bullet Point

• HD digital VTX bracket made of lightweight and tough injection-molded PP material with an adjusted structure to prevent HD VTX displacement or loss after the crash.
• Incorporating an angle-limited lens protection print and DJI O3 series filters, It is recommended to purchase, which can increase safety and improve visual quality.
• The Rubber Damper Vibration damping design reduces low-frequency vibrations and is used with GyroFlow stabilization software for a stable and clear camera image during high-speed flight.
• To accommodate a wider range of battery sizes, the main body of the frame can be trimmed through DIY methods. Additionally, larger batteries can be installed by using battery straps or printed components.
• The DJI O3 can be directly installed, while Avatar and Vista require a 20*20 mounting plate and screws (included) for fixation. The naked frame is suitable for users who DIY refit and assemble the HD VTX by themselves
• We offer a wider range of colors for the Pavo Pico frames, giving you even more options to choose from. Whether you prefer a bold and bright hue or a more subdued shade, we have a color that will suit your style. You can choose your favorite color or collect them all to create your own unique mix-and-match cinewhoop.

Specification

• Item: Pavo Pico Brushless Whoop Frame
• Material: PA12
• Wheelbase: 80.8mm
• Battery Slot Size: 16mm*12.7mm
• Camera Installation Spacing: 19mm/20mm
• Color: Black/Blue/Transparent/Transparent grey
• Weight: 13.80g/11.62g
• Motor Mounting Hole Position: 3-M1.4-φ6.6mm
• FC Pattern: 26×26mm, suitable for F4 1S 12A AIO Brushless FC V3

Pavo Pico Frame Kit

We used ultra-light PP material to make the HD VTX mounting bracket, increasing its toughness. The antenna fixing slot and frame have been fused to reduce damage risk, while the camera's installation height has been lowered with a protective printed part to limit its movable angle to within 30°. Additionally, an O3 filter can be used to protect the lens and enhance image quality. We have incorporated a unique rubber damper vibration-damping design, used with GyroFlow stabilization software, which greatly enhances safety and ensures a smooth, HD image output. When you screw the die-cast screws, please DO NOT screw them too tight to leave room for rubber dampers to absorb vibration. It may cause jello in the video footage.
