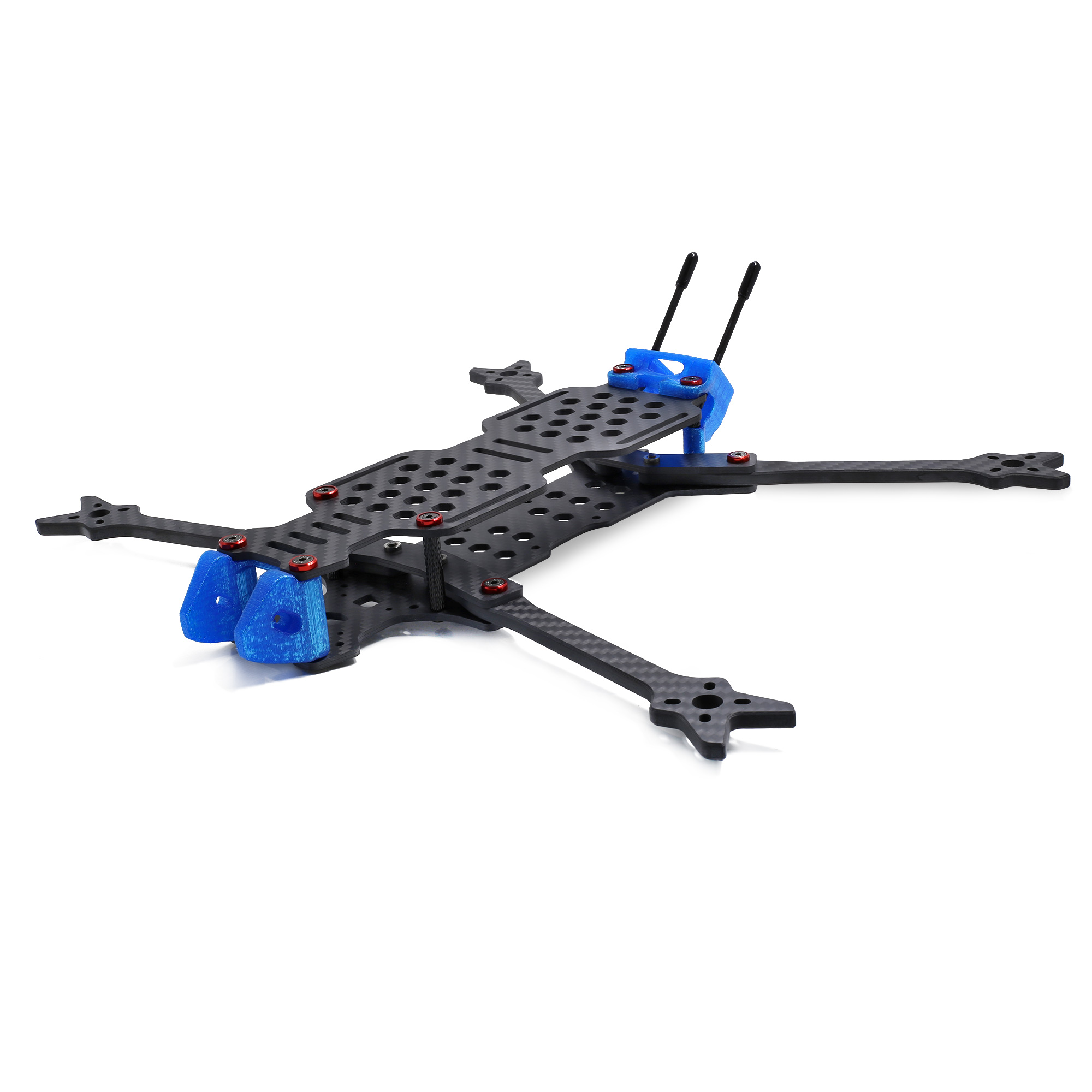

GEP-LC7 Frame

Multiple HD mount options, The front part of the frame is designed to be compatible with two FPV and HD video modules of two sizes (30.5*30.5, 20*20) currently on the market。This means that the frame can be paired with multiple HD video modules such as RunCam Split 2S and RunCam Split Mini2 or Caddx Turtle. You can also pair it with a GoPro hero7 TPU Mount, Use GoPro hero7 to get your high-definition footage.

Both the camera and the antenna are fixed with TPU to protect them. The mounting position of GPS is independently designed with a size of 22mm*20mm. 5mm thickness arms，has ample room, more stacks.It will be your choice for long range flights.

  GEP-LC7 Specifications：

Brand name：GEPRC
Product name：Crocodile7
Frame type：GEPRC GEP-LC7
Motor to motor：315mm
Propeller：7inch
camera：19mm
Top plate：5mm
Bottom plate：5mm
Arms：5mm
Weight：153g

GEP-LC7 Recommended：

Flight Controller：F7/F4/F3/Kiss/RF

Motor： 2207-1500~1700KV / 2306-1500~1700KV / 2407-1300~1700

ESC：40A-60A

Propeller：6~7inch

Lipo:  6S 2200mAh ~ 6S 2600mAh

Features：

7 inches, more suitable for long range flight shooting
Multiple HD mount options
more accessorize
Camera and the antenna are fixed with TPU
Full 3K Carbon Fiber airframe,durable in crashing
Independent GPS mounting position, special tilt design, stronger signal
Has ample room
5mm Arms，More lift

GEP-LC7 Crocodile Includes：

1 x 3D TPU Camera Protector
1 x 3DTPU Antenna protection,GPS protection
1 x 2.5mm Top plate
1 x 2.5mm Bottom plate
4 x 5mm Arms
1 x 2.5mm Small front (top) plate
1 x 2.5mm Small rear (top) plate

Hardware：

8 x M3Gasket red
6 x M3*25mm Aluminum alloy standoff  Black color
4 x M3*12 YFS Button Screw
6 x M3*8 YFS Button Screw
4 x M3*10 Flat Screw
6 x M3*14 Flat Screw
8 x insert nut
2 x GEPRC Lipo strap
8 x EVA Shock absorption
2 x Lipo foam pad
2 x 2.4gAntenna fixed tube
