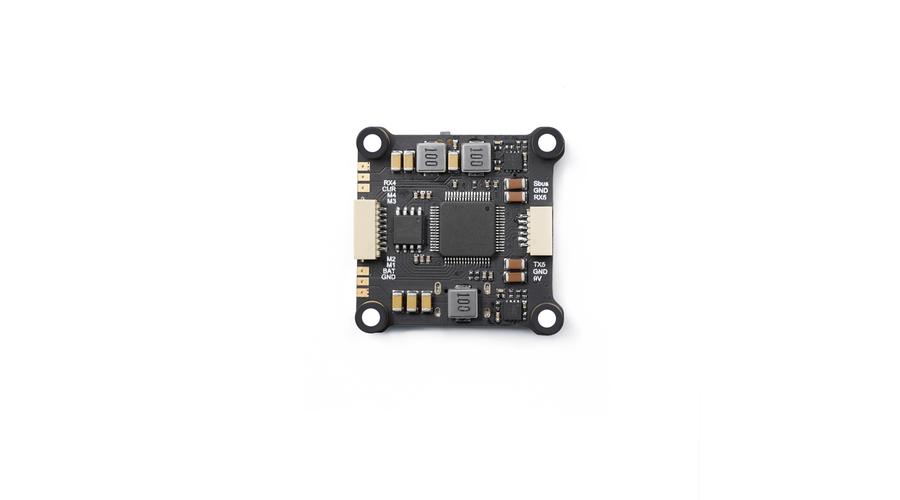

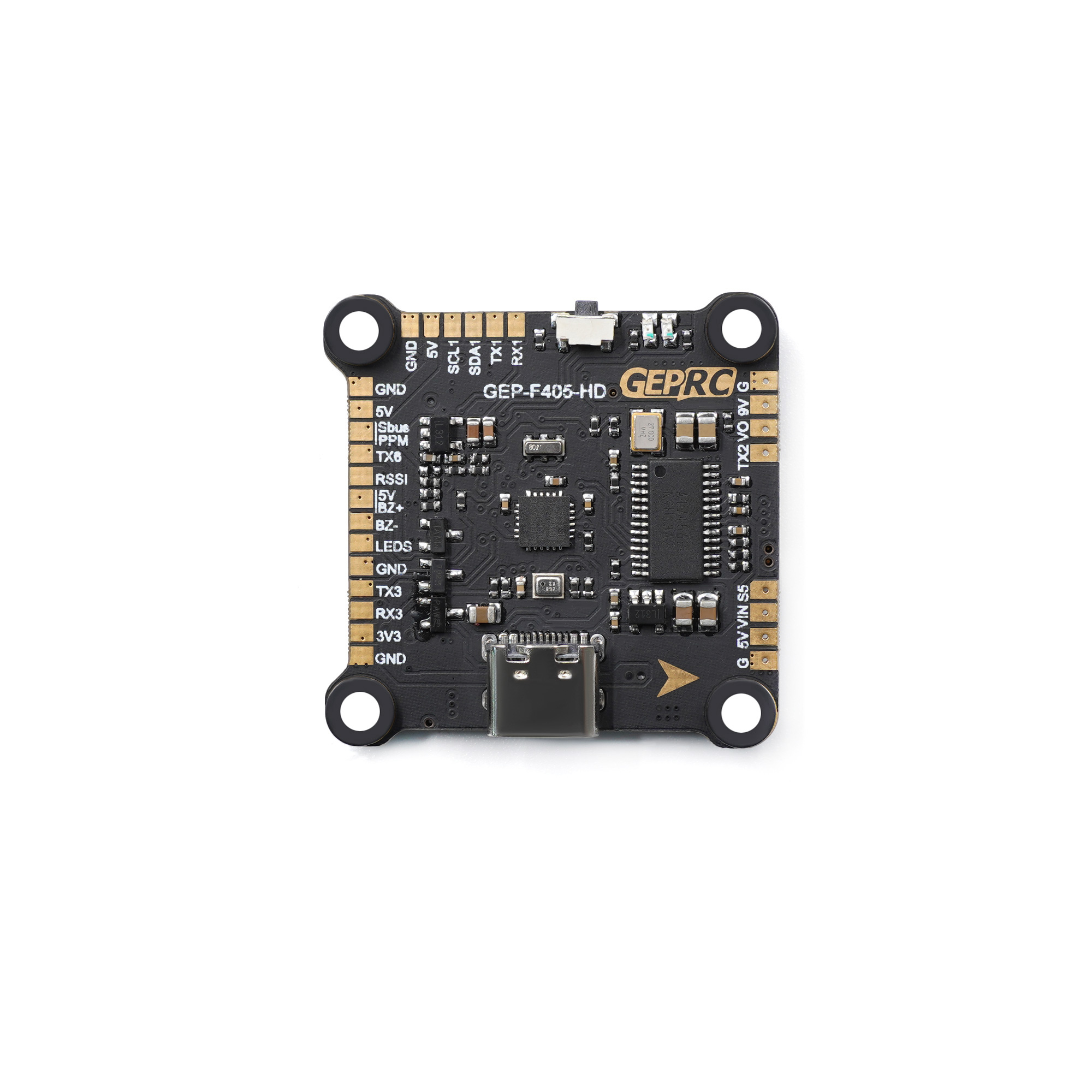

GEPRC GEP-F405 HD 3-6S Flight Controller (FC)
Price:
26.76 EUR
| Manufacturer: |
|
| Model: | GEPRC GEP-F405 HD |
|
|
|
Description
Parameters
| Dimensions (Length * Width * Height) | 36 x 36 mm |
| barometer | BMP280 |
| BEC | 9V/2A & 5V/3A |
| Black box | internal 16MB |
| FC CPU | STM32F405 |
| DJI HD support | yes |
| OSD | yes |
| UARTS | 6 |
| Mounting pattern | 30,5x30,5 mm (mini) |
| IMU | MPU6000 |
| voltage | 3-6 cell (11.1V-22.2V) |
| MCU | STM32F405 |
| IMU | MPU6000(SPI) |
| Digtal Video support | DJI FPV Air Unit |
| BlackBox | 16Mb onboard Flash |
| USB | Type-C |
| OSD | BetaFlight OSD w/ AT7456E chip |
| Baro：BMP280 | |
| BEC Output | 5V,9V BEC |
| Integrated LC Filter | |
| Firmware target | GEPRCF405 |
| Size | 36x36mm board, φ4mm with Grommets φ3mm |
| Power input | 3-6S LiPo |
| UARTs | 6x |
| Receiver Support | Frsky XM/XM+/R-XSR |
| Futaba Receiver | |
| DSM/DSMX | |
| FlySky Receive | |
| TBS Crossfire Receiver | |
| AC900 |
Package contents
1x GEP-F405-HD Flight Controller
4x Silicon grommets M4 to M3
1x XT60 Power Cable
1x ESC Cable
