Happymodel ES24TX Pro Micro ExpressLRS ELRS TX module
Price:
50.37 EUR
| Manufacturer: |
|
| Model: | HAPPY_ELRS_ES24TX__PRO_MICRO |
|
|
|
Description

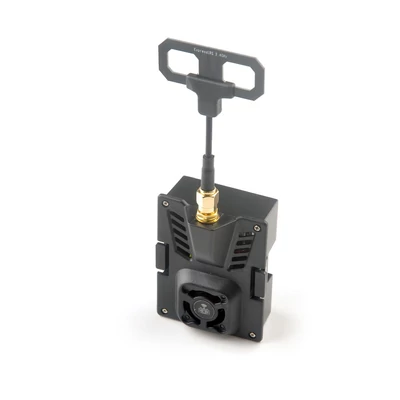

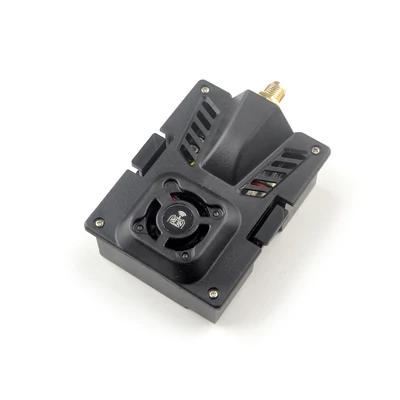

The ES24TX Pro Micro ExpressLRS TX module is an enhanced version of the ES24TX module.

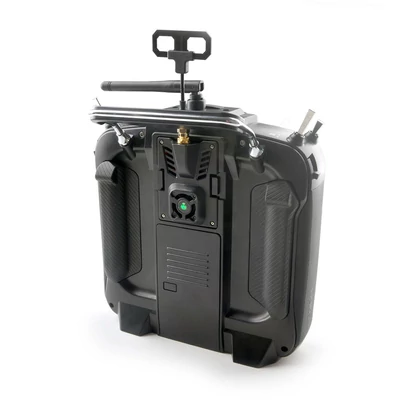

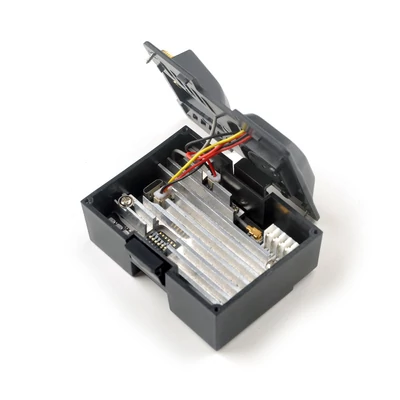

Maximum power up to 1000 mw, reserved cooling fan and RGB LED module. This Micro TX module supports most OpenTX radio stations that have a Micro JR slot. And this time, the ES24TX Pro module arrives fully assembled before it leaves the factory.
Parameters
| Radio frequency | 2.4 GHz |
| Regulatory range | ISM2400 |
| MCU | ESP32 (main), ESP8285 (aux as espbackpack) |
| RF chip | SX1281IMLTRT |
| JR standard 5-pin socket | |
| Frequency range | 2400 MHz to 2500 MHz |
| Maximum reception refresh rate | 500 Hz |
| Minimum receiver refresh rate | 25 Hz |
| RF output power | > 30dBm |
| Power supply | 5V ~ 10V |
| Weight | 51 grams (without antenna) |
| Size | 70mm * 49mm * 32.5mm |
| Antenna gain | 4.18 dBi |
| Firmware target | HappyModel_ES24TX_Pro_Series_2400_TX |

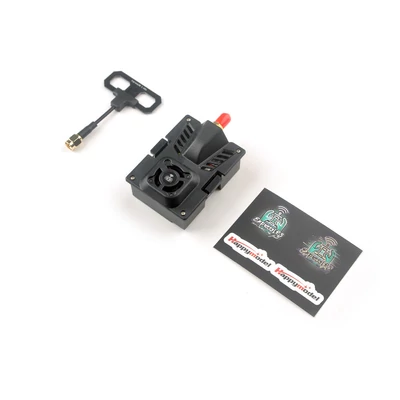

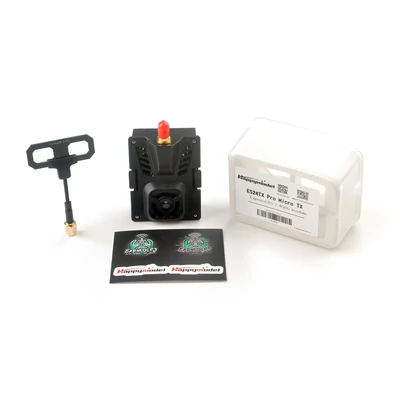

Package included
1 x ES24TX Pro Micro TX module
1 x Happymodel 2.4GHz Moxon antenna
1 x Happymodel 2.4GHz Moxon antenna
