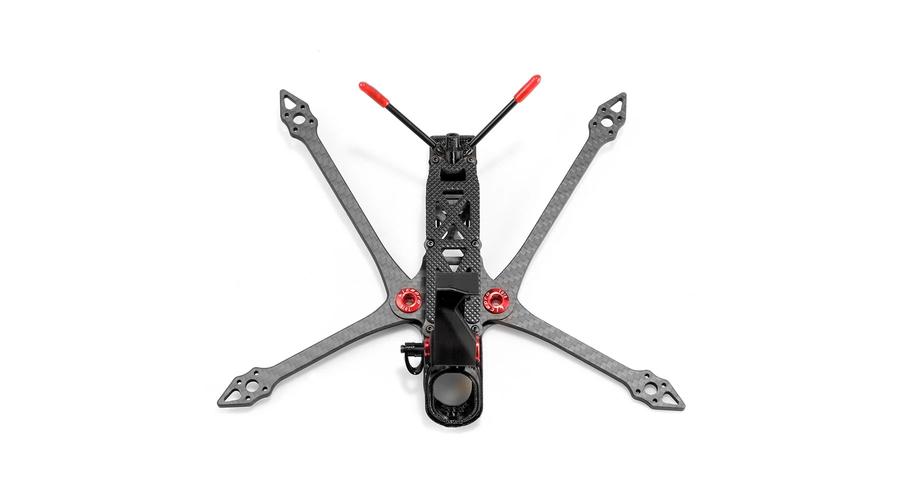

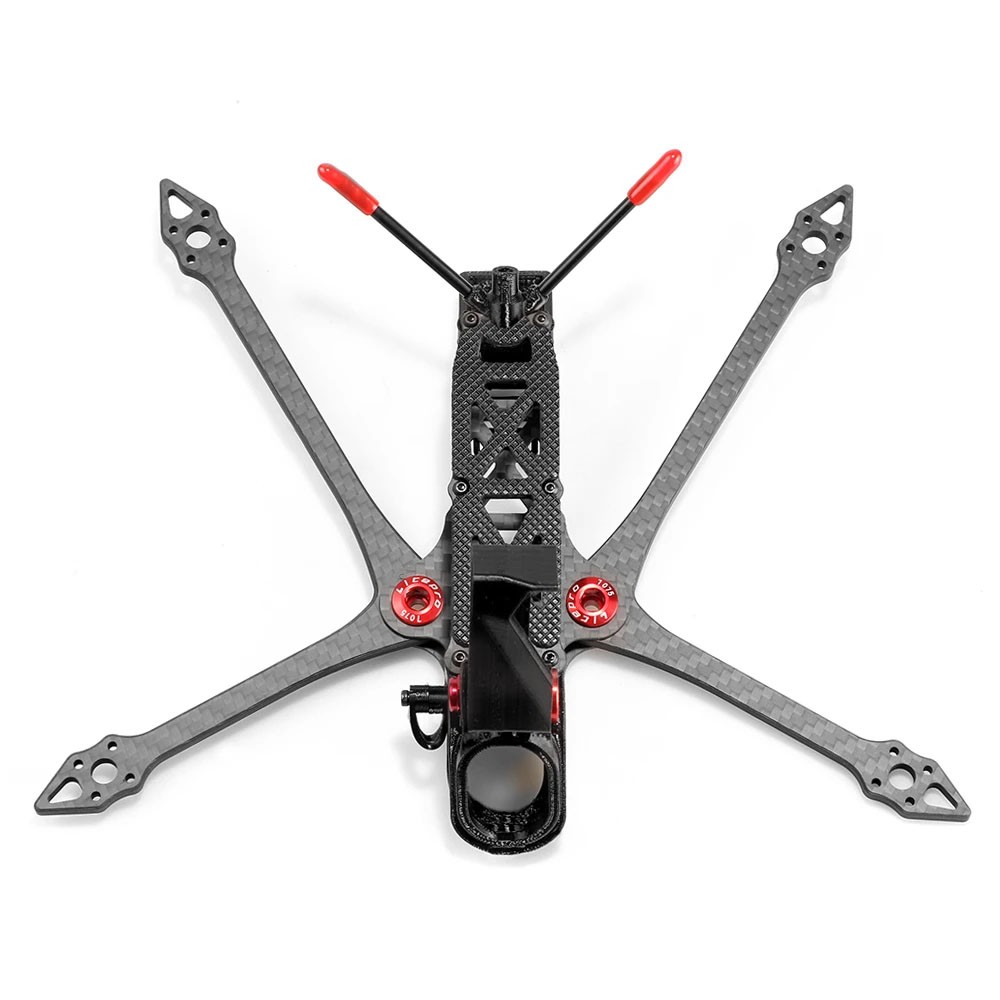

HGLRC Rekon5 5 inch Long Range frame

55.97 EUR
Model: HGLRC_Rekon5
Váz mérete: 5 inch 180-230 mm



Mounting pattern 20x20 mm (micro)
stílus Long Range
Weight 72,2 g
Material 3K Carbon Fiber
Wheelbase 210mm
size 240*155mm
Top plate thickness 1.5mm
Bottom plocte thickness 1.5mm
Middle plate thickness 1.5mm
Arm Thickness 4mm
protective bar 3mm
Top and middle plate spacing 23mm
Support camera 19mm

Package included

Package Includes in the frame kit:
1x 1.5mm top plate
1x 1.5mm bottom plate
1x 1.5mm middle plate
2x 4mm arms
2x 3mm protective bars
2x M2*25mm Black mesh aluminum column
4x M2*20mm Black mesh aluminum column
4x round head screws M3*20
4x cup head screws M2*20
1x cup head screws M2*12
10x cup head screws M2*9
12x round head screws M2*5
1x countersunk screws M5*20
1x M5 countersunk head screws washer (red)
1x M5 Anti-loose self-locking nut (red)
2x 7075 Crankset Screws (red)
2x round head screw M2*4
4x M3 Self-tightening nut
5x M2 Self-tightening nut
8x M3*8 shock-absorption balls
4x M2*4 shock-absorption balls
2x Battery cable straps 20x200mm
1x Battery Anti-slip pad
1x TPU SMA antenna base
1x TPU antenna base
1x TPU camera mount
1x TPU naked Gopro mount
1x TPU GPS mount
1x TPU buzzer holder
1x TPU T antenna base

Recommended Parts:( Not Included )
Flight Controller:F4/F7/FC
Camera:19X19mm size
Propeller:5 Inch

Note:  SMO 4K Mount is not included in the frame kit
