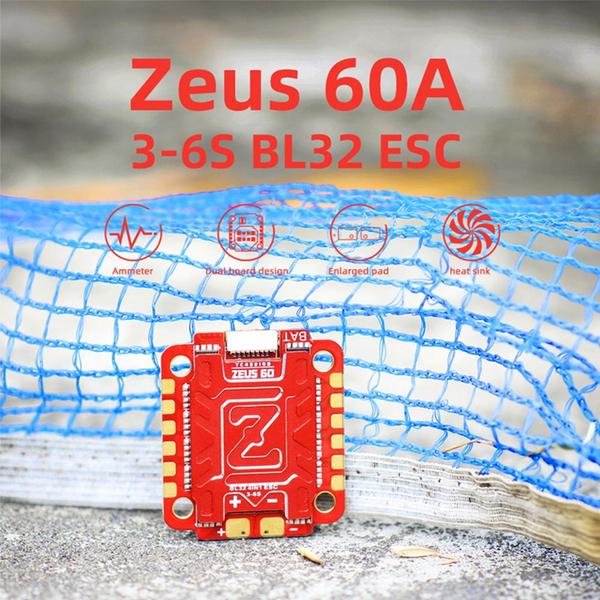

The HGLRC Zeus ESC is a 60A 4-in-1 ESC with a 30.5x30.5 mounting pattern. The heat sink radiation design makes this perfect for freestyle FPV racing by providing heat dissipation for high power and improved stability, and increased shock absorption.
An Integrated LED controller allows quick programming of LEDs with the push of a button.
Easy direct soldering for XM+, NANO receiver, and TBS Nano VTX
Quickly connect DJI and LED and GPS via socket
Maximum BEC 9V/2A and BEC 5V/3A output
Integrated barometer and 16M black box.
Reserved Soldering Pad
Enlarged Soldering Pad
|Dimensions (Length * Width * Height)
|30,5x30,5 mm (mini)
|3-6 cell (11.1V-22.2V)
1x HGLRC Zeus 60A 3-6S 4-in-1 BLHeli_32 ESC
4x M3 Shock Absorption (Red)
1x Connecting Wire (XT60H)
1x SH1.0 8PIN Cable 60mm
