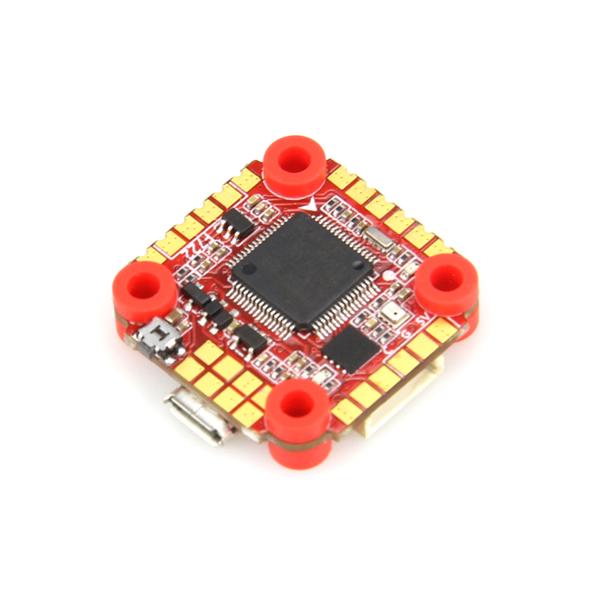

HGLRC Zeus F722 mini 3-6S Flight Controller
| Manufacturer: |
|
| Model: | HGLRC Zeus F722 mini |
|
|
|
|
A HGLRC F722 mini 20x20 mm-es beépítőfuratos repülésirányítója MPU6000-es giroszkópot tartalmaz és 3-6S-es LiPo akkumulátorokat támogat. |
|
Description
Usage:for 100mm-450mm Frame Kit
FC Firmware:BF HGLRCF722(HGLR)
Installing Hole:20X20mm.M2/M3
Item Name:Zeus F722 mini Flight Controller
MPU:MPU6000
UARTS:5
CPU:STM32F722 RET6
Input Voltage:2-6S Lipo
Built-in Betaflight OSD to adjust PID
BEC Output:9V/2A
5V/3A
BlackBox:8M
Barometer:BMP280(I2C)
Size:28.2x28.1mm
Installing Hole:20X20mm.M2/M3
Weight:4.6g
Product Features:
1.Integrated barometer and 8M black box.
2.Maximum BEC 9V/2A and BEC 5V/3A output
3.Easy direct soldering for XM+, Crossfire NANO receiver
4.Quickly connect DJI Air Unit.
Parameters
| barometer | BMP280 |
| BEC | 9V/2A & 5V/3A |
| Black box | internal 8MB |
| FC CPU | STM32F722 RET6 |
| DJI HD support | yes |
| OSD | yes |
| UARTS | 5 |
| Mounting pattern | 20x20 mm (micro) |
| IMU | MPU6000 |
| voltage | 3-6 cell (11.1V-22.2V) |
