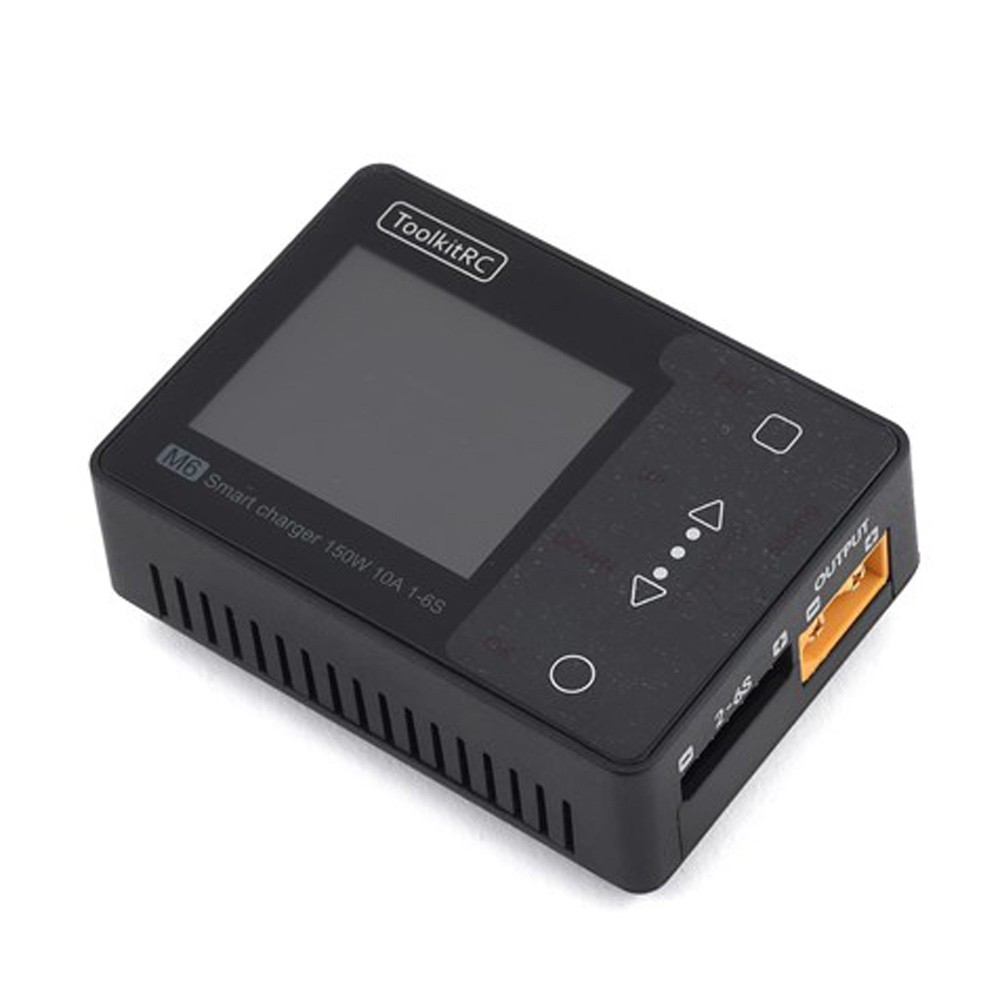

The Toolkit RC M6 V2.0 is a small 150w color screen charger! At heart, the M6 is a small and compact charger that boasts a wide array of other features not found in chargers on the market. Additional functionality includes a servo tester, battery cell checker, wattmeter (power meter), PWM/PPM/S.Bus input testers (for receiver testing), as well as output generators that offer variable voltage and amperage with DC current.
Toolkit M6 Features
- Battery Charger
- Cell Checker
- Servo Tester
- PWM,PPM, S.Bus Input/output & Receiver tester
- Viable AMP/Volt DC Power supply (Requires external DC input)
- Lithium battery cut-off voltage can be set (TVC function)
- Measure battery voltage, internal resistance, balance
- Measure PWM,PPM, S.Bus signal values @ 1ms accuracy
- Output PWM, PPM, S.Bus standard signal @ 1ms accuracy
- The customizable 1-28V constant output voltage, 1-10A constant output current
- Multi-language optional
- USB 2.1A@5.0V Output (Mobile device charging)
- U-disk firmware upgrade (Slave device)
- Input voltage: 7.0-28V
- Type of battery: Lipo, LiHV, LiFe, Lion @ 1-6S, NiMh @ 1-16S, Pb @ 1-10S
- Charge power: 150W / Up to 10A
- Discharge power: Recycle Mode: 150W/ Up to 10A Normal Mode: 8W @ Up to 2A
- USB: 2.1A @ 5.0V (Mobile Charging) or USB Firmware updating
- Dimensions: 68x49x26mm
- Weight: 80g
- LCD: 1.8inch TFT RGB, 160x128 Pixel
- PWM: 880-2200us @ 20-400Hz
- PPM: 880-2200us*8CH @ 20-50Hz
- SBUS: 880-2200us*16CH @ 20-100Hz
- Voltage: 1.0-5.0V @ 1-6S
- IR: 10-99mR @ 1-6S
- PWM: 500-2500us @ 20-1000Hz
- PPM: 880-2200us*8CH @ 50Hz
- SBUS: 880-2200us*16CH @ 74Hz
- Power: 1-10A @ 1-28V Mode:CC+CV
|Dimensions (Length * Width * Height)||68 x 49 x 26 mm|
|DC power input||7 - 28 V|
|Charge current||0,1-10 Amper|
