Happymodel ES24TX Micro ExpressLRS ELRS TX module
Price:
43.37 EUR
| Manufacturer: |
|
| Model: | HAPPY_ELRS_ES24TX_MICRO |
|
|
|
Description
This Micro TX is designed by Happymodel and based on the open source- ExpressLRS which is a very popular low latency and high re-flashed rate RF module for RC Airplane and FPV Racing. Its main hardware architecture is ESP32, ESP8285 and SX1280 RF chip. The ES24TX module is a complete solution which is already pre-load the Expresslrs firmware and its plug and play.
Parameters
| Radio frequency | 2.4 GHz |
| Regulatory Domain | ISM2400 |
| MCU | ESP32(main),ESP8285(aux,as espbackpack) |
| RF chip | SX1280IMLTRT |
| JR standard 5pin socket | |
| Frequency Range | 2400 MHz to 2500 MHz |
| Maximum receive refresh rate | 500Hz |
| Minimum receiver refresh rate | 25Hz |
| RF Output Power | 10dBm~24dBm |
| Power supply voltage | 5v~10v |
| Weight | 9.5gram(without antenna） |
| Dimension | 55.5mm*39.5mm*8mm |
| Antenna gain | 1.87dBi |
| The JR Bay Case Color has change Black |
Package included

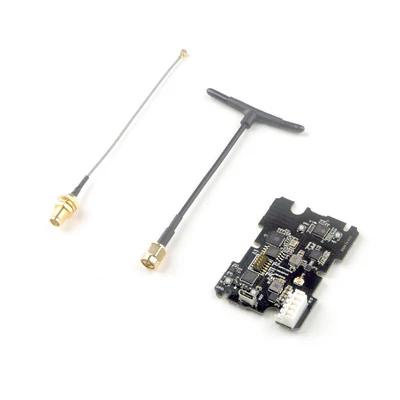

1 x ES24TX Module
1 x 24TX80 Antenna

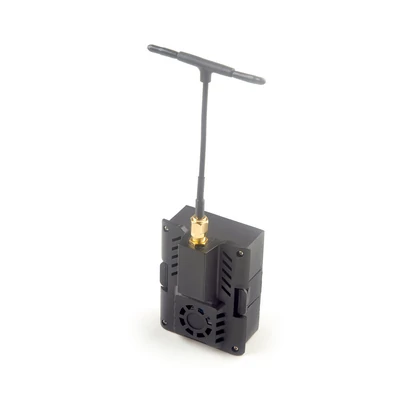

1 x 3D Printed Mounting Box

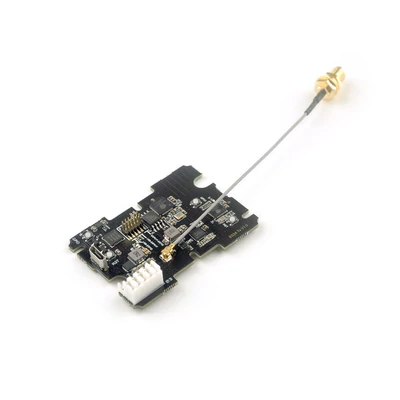

1 x Antenna Adapter Cable
